BL053 SINGLE Impeller / SINGLE Stage Blower - 2" Connections

...
Product Description
£751.00 £857.00
Maximum quantity available reached.

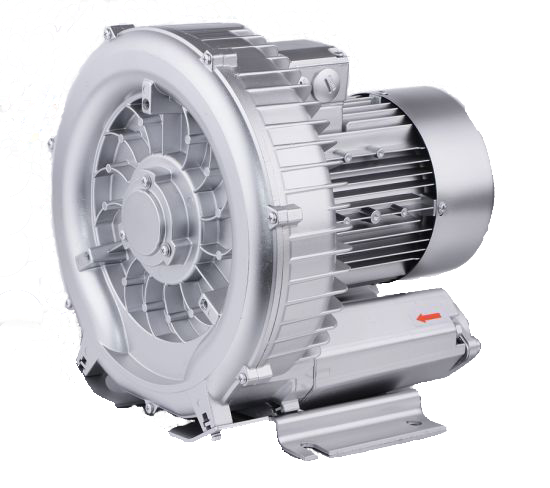

BL053 Side Channel Blower – Single Impeller / Single Stage

⚙️Continuous DutyBuilt for 24/7 operation
🌬️Vacuum & PressureExhaust or compression use
🔇Low Noise65 dB operation
🏗️Aluminium BodyFull die-cast construction

1.5 kW

  • Max Airflow: 270 m³/hr
  • Rated Vacuum: 160 mbar
  • Rated Compression: 150 mbar
  • Noise Level: 65 dB
  • Weight: 24 kg

2.2 kW

  • Max Airflow: 270 m³/hr
  • Rated Vacuum: 220 mbar
  • Rated Compression: 230 mbar
  • Noise Level: 65 dB
  • Weight: 26 kg
Connection Size2"
Frequency50Hz / 60Hz
ConstructionDie-Cast Aluminium

Typical Applications

  • Pneumatic conveying
  • Vacuum lifting systems
  • Packaging machinery
  • Industrial drying
  • Aquaculture and aeration
  • Printing machinery
  • Medical and laboratory equipment
  • Vacuum or pressure systems

Available Accessories

  • Anti-vibration mounts

Download Full Technical Data Sheet

Includes dimensional drawings, airflow curves, electrical specifications, and accessory options.

Download Data Sheet

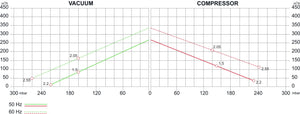

60Hz Performance

At 60Hz, airflow increases to 330 m³/hr. Power options are 2.05 kW and 2.55 kW depending on selected model.

Performance Information

Performance figures are based on handling air at 15°C with normal density and an absolute pressure of 1023 mbar. Manufacturing tolerance ±10%.

Need technical assistance?

Contact our technical sales team for help selecting the correct blower, filters, silencers, or accessories for your application.

Download Technical Sheet
Sku: BL053001M1500
