BL05 SINGLE Impeller / SINGLE Stage Blower - 2" Connections

...
Product Description
£680.00 £776.00
Maximum quantity available reached.

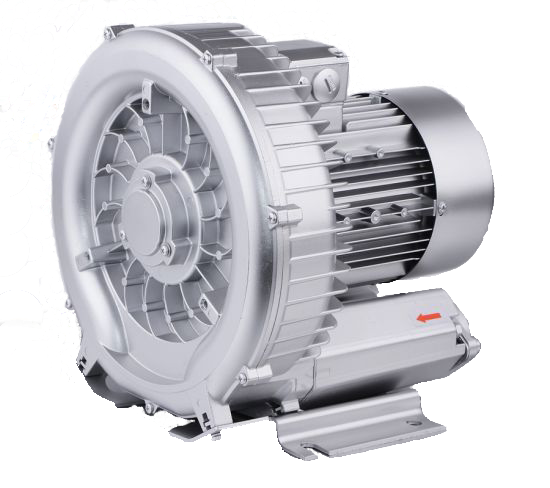

BL05 Side Channel Blower – Single Impeller / Single Stage

⚙️ Continuous Duty Built for 24/7 operation
🌬️ Vacuum & Pressure Exhaust or compression use
🔇 Low Vibration Dynamically balanced impeller
🏗️ Aluminium Body Full die-cast construction

1.3 kW

  • Max Airflow: 210 m³/hr
  • Rated Vacuum: 170 mbar
  • Rated Compression: 170 mbar
  • Noise Level: 64 dB
  • Weight: 22 kg

1.5 kW

  • Max Airflow: 210 m³/hr
  • Rated Vacuum: 200 mbar
  • Rated Compression: 190 mbar
  • Noise Level: 64 dB
  • Weight: 23 kg

2.2 kW

  • Max Airflow: 210 m³/hr
  • Rated Vacuum: 220 mbar
  • Rated Compression: 270 mbar
  • Noise Level: 64 dB
  • Weight: 27 kg
Connection Size 2"
Frequency 50Hz / 60Hz
Construction Die-Cast Aluminium

Typical Applications

  • Pneumatic conveying
  • Vacuum lifting systems
  • Packaging machinery
  • Industrial drying
  • Wastewater aeration
  • Printing machinery
  • Medical and laboratory equipment
  • Dust extraction systems

Available Accessories

  • Anti-vibration mounts

Download Full Technical Data Sheet

Includes dimensional drawings, airflow curves, electrical specifications, and accessory options.

Download Data Sheet
Performance Information

Performance figures are based on handling air at 15°C with normal density and an absolute pressure of 1023 mbar. Manufacturing tolerance ±10%.

Motor & Electrical Information

Available in multiple voltage configurations for both single-phase and three-phase operation depending on selected model.

Need technical assistance?

Contact our technical sales team for help selecting the correct blower, filters, silencers, or accessories for your application.

Download Technical Sheet
Sku: BL050001M1300
