BL02 SINGLE Impeller / SINGLE Stage Side Channel Blower - 1 ¼" Connections

...
Product Description
£324.00 £368.00
Maximum quantity available reached.

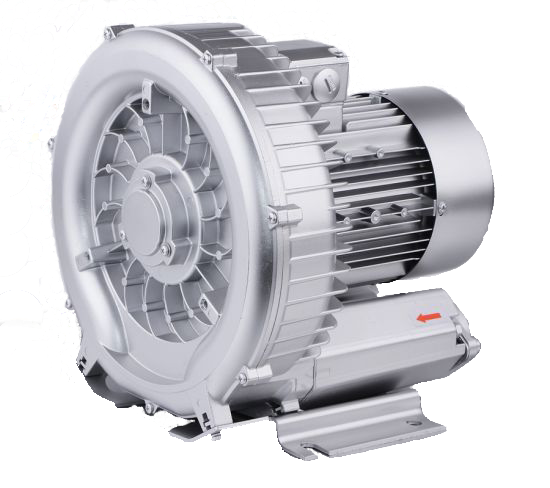

BL02 Side Channel Blower – Single Impeller / Single Stage

⚙️Continuous DutyBuilt for 24/7 operation
🌬️Vacuum & PressureExhaust or compression use
🔇Low Noise53 dB operation
🏗️Aluminium BodyFull die-cast construction

0.4 kW

  • Max Airflow: 80 m³/hr
  • Rated Vacuum: 120 mbar
  • Rated Compression: 130 mbar
  • Noise Level: 53 dB
  • Weight: 10 kg
Connection Size1¼"
Frequency50Hz / 60Hz
ConstructionDie-Cast Aluminium

Typical Applications

  • Pneumatic conveying
  • Vacuum lifting systems
  • Packaging machinery
  • Industrial drying
  • Aquaculture and aeration
  • Printing machinery
  • Medical and laboratory equipment
  • Small vacuum or pressure systems

Available Accessories

  • Anti-vibration mounts

Download Full Technical Data Sheet

Includes dimensional drawings, airflow curves, electrical specifications, and accessory options.

Download Data Sheet
60Hz Performance

At 60Hz, this model is rated at 0.5 kW with max airflow of 98 m³/hr, rated vacuum of 150 mbar, rated compression of 160 mbar, and 56 dB noise level.

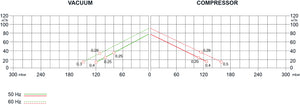

Performance Information

Performance figures are based on handling air at 15°C with normal density and an absolute pressure of 1023 mbar. Manufacturing tolerance ±10%.

Need technical assistance?

Contact our technical sales team for help selecting the correct blower, filters, silencers, or accessories for your application.

Download Technical Sheet
Sku: BL020001M0400
