BL01 SINGLE Impeller / SINGLE Stage Side Channel Blower - 1" Connections

...
Product Description
£289.00 £328.00
Maximum quantity available reached.

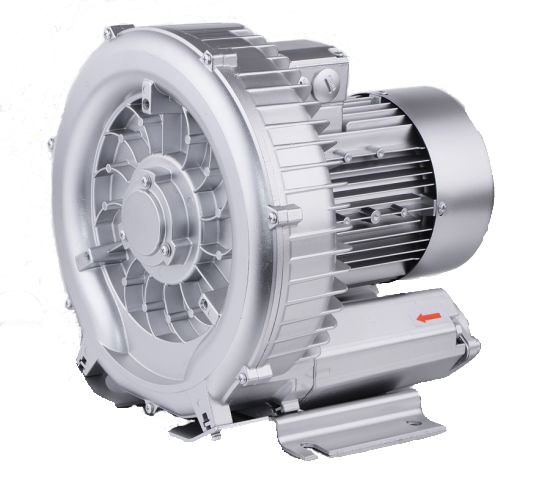

BL01 Side Channel Blower – Single Impeller / Single Stage

⚙️ Continuous Duty Built for 24/7 operation
🌬️ Vacuum & Pressure Exhaust or compression use
🔇 Low Noise 50 dB operation
🏗️ Aluminium Body Full die-cast construction

0.2 kW

  • Max Airflow: 40 m³/hr
  • Rated Vacuum: 60 mbar
  • Rated Compression: 70 mbar
  • Noise Level: 50 dB
  • Weight: 6 kg
Connection Size 1"
Frequency 50Hz / 60Hz
Construction Die-Cast Aluminium

Typical Applications

  • Pneumatic conveying
  • Vacuum lifting systems
  • Packaging machinery
  • Industrial drying
  • Aquaculture and aeration
  • Printing machinery
  • Medical and laboratory equipment
  • Small vacuum or pressure systems

Available Accessories

  • Anti-vibration mounts

Download Full Technical Data Sheet

Includes dimensional drawings, airflow curves, electrical specifications, and accessory options.

Download Data Sheet

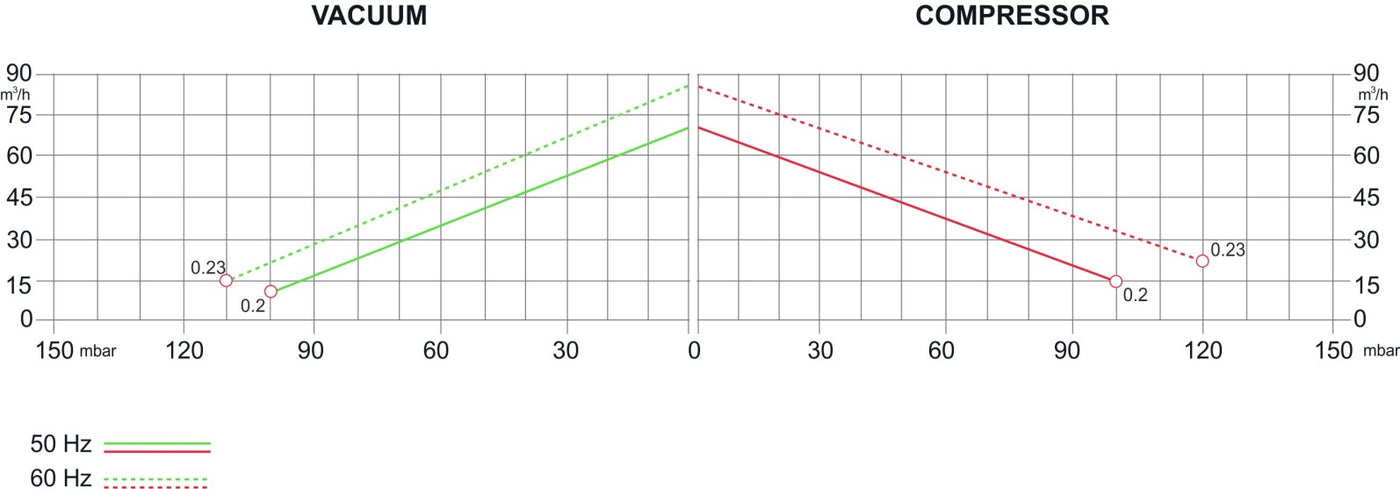

Performance Information

Performance figures are based on handling air at 15°C with normal density and an absolute pressure of 1023 mbar. Manufacturing tolerance ±10%.

Motor & Electrical Information

Available in single-phase and three-phase configurations depending on selected model.

Need technical assistance?

Contact our technical sales team for help selecting the correct blower, filters, silencers, or accessories for your application.

Download Technical Sheet
Sku: BL010001M0200
