BL063 SINGLE impeller / SINGLE stage Blower - 2" Connections

...
Product Description
£1,085.00 £1,238.00
Maximum quantity available reached.

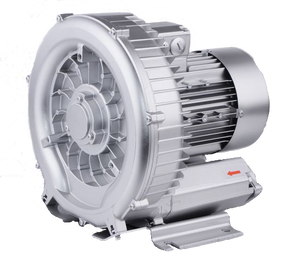

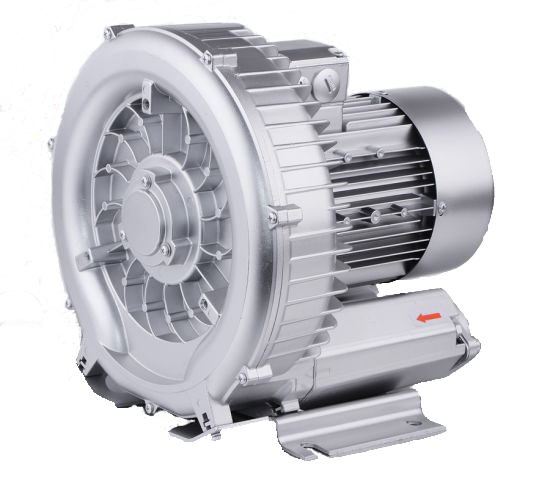

BL063 Side Channel Blower – Single Impeller / Single Stage

⚙️Continuous DutyBuilt for 24/7 operation
🌬️Vacuum & PressureExhaust or compression use
🔇Low Noise70 dB operation
🏗️Aluminium BodyFull die-cast construction

3.0 kW

  • Max Airflow: 420 m³/hr
  • Rated Vacuum: 220 mbar
  • Rated Compression: 200 mbar
  • Noise Level: 70 dB
  • Weight: 37 kg

4.0 kW

  • Max Airflow: 420 m³/hr
  • Rated Vacuum: 260 mbar
  • Rated Compression: 280 mbar
  • Noise Level: 70 dB
  • Weight: 43 kg
Connection Size2"
Frequency50Hz / 60Hz
ConstructionDie-Cast Aluminium

Typical Applications

  • Pneumatic conveying
  • Vacuum lifting systems
  • Packaging machinery
  • Industrial drying
  • Aquaculture and aeration
  • Printing machinery
  • Medical and laboratory equipment
  • Vacuum or pressure systems

Available Accessories

  • Safety valves
  • In-line filters
  • Cartridge filters
  • Final silencers
  • In-line silencers
  • Vacuum and pressure gauges
  • Check valves
  • Anti-vibration mounts

Download Full Technical Data Sheet

Includes dimensional drawings, airflow curves, electrical specifications, and accessory options.

Download Data Sheet
60Hz Performance

At 60Hz, airflow increases to 500 m³/hr. Power options are 3.45 kW and 4.6 kW depending on selected model.

Performance Information

Performance figures are based on handling air at 15°C with normal density and an absolute pressure of 1023 mbar. Manufacturing tolerance ±10%.

Need technical assistance?

Contact our technical sales team for help selecting the correct blower, filters, silencers, or accessories for your application.

Download Technical Sheet
Sku: BL063001M1500
