BL073 SINGLE impeller / SINGLE stage Blower - 2 ½" Connections

...
Product Description
£2,500.00 £2,856.00
Maximum quantity available reached.

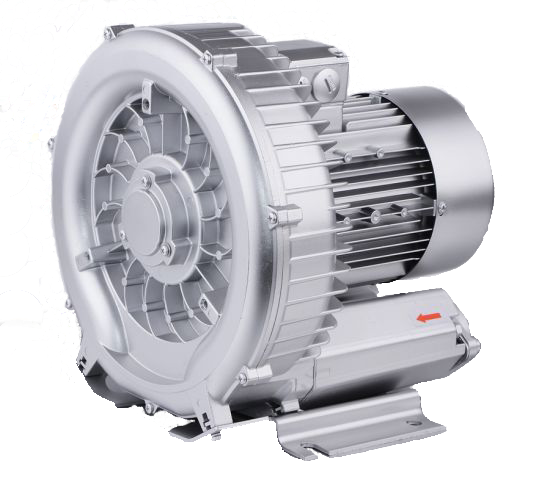

BL073 Side Channel Blower – Single Impeller / Single Stage

⚙️Continuous DutyBuilt for 24/7 operation
🌬️Vacuum & PressureExhaust or compression use
🔇Low Noise70 dB operation
🏗️Aluminium BodyFull die-cast construction

4.0 kW

  • Max Airflow: 700 m³/hr
  • Rated Vacuum: 150 mbar
  • Rated Compression: 140 mbar
  • Noise Level: 70 dB
  • Weight: 57 kg

5.5 kW

  • Max Airflow: 700 m³/hr
  • Rated Vacuum: 200 mbar
  • Rated Compression: 180 mbar
  • Noise Level: 70 dB
  • Weight: 66 kg

7.5 kW

  • Max Airflow: 700 m³/hr
  • Rated Vacuum: 270 mbar
  • Rated Compression: 260 mbar
  • Noise Level: 70 dB
  • Weight: 69 kg
Connection Size2½"
Frequency50Hz / 60Hz
ConstructionDie-Cast Aluminium

Typical Applications

  • Pneumatic conveying
  • Vacuum lifting systems
  • Packaging machinery
  • Industrial drying
  • Aquaculture and aeration
  • Printing machinery
  • Medical and laboratory equipment
  • Vacuum or pressure systems

Available Accessories

  • Safety valves
  • In-line filters
  • Cartridge filters
  • Final silencers
  • In-line silencers
  • Vacuum and pressure gauges
  • Check valves
  • Anti-vibration mounts

Download Full Technical Data Sheet

Includes dimensional drawings, airflow curves, electrical specifications, and accessory options.

Download Data Sheet

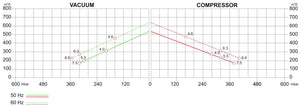

60Hz Performance

At 60Hz, airflow increases to 840 m³/hr. Power options are 4.6 kW, 6.3 kW, and 8.6 kW depending on selected model.

Performance Information

Performance figures are based on handling air at 15°C with normal density and an absolute pressure of 1023 mbar. Manufacturing tolerance ±10%.

Need technical assistance?

Contact our technical sales team for help selecting the correct blower, filters, silencers, or accessories for your application.

Download Technical Sheet
Sku: BL07300104000
