BL06 SINGLE Impeller / SINGLE Stage Blower - 2" Connections

...
Product Description
£895.00 £1,021.00
Maximum quantity available reached.

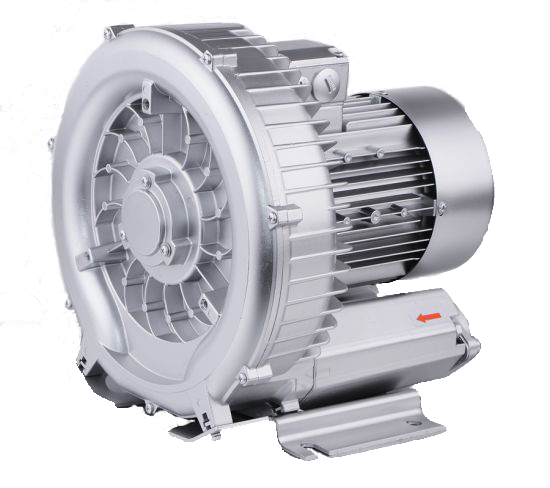

BL06 Side Channel Blower – Single Impeller / Single Stage

⚙️Continuous DutyBuilt for 24/7 operation
🌬️Vacuum & PressureExhaust or compression use
🔇Low Noise69 dB operation
🏗️Aluminium BodyFull die-cast construction

2.2 kW

  • Max Airflow: 318 m³/hr
  • Rated Vacuum: 180 mbar
  • Rated Compression: 190 mbar
  • Noise Level: 69 dB
  • Weight: 31 kg

3.0 kW

  • Max Airflow: 318 m³/hr
  • Rated Vacuum: 270 mbar
  • Rated Compression: 270 mbar
  • Noise Level: 69 dB
  • Weight: 36 kg

4.0 kW

  • Max Airflow: 318 m³/hr
  • Rated Vacuum: 290 mbar
  • Rated Compression: 360 mbar
  • Noise Level: 69 dB
  • Weight: 40 kg
Connection Size2"
Frequency50Hz / 60Hz
ConstructionDie-Cast Aluminium

Typical Applications

  • Pneumatic conveying
  • Vacuum lifting systems
  • Packaging machinery
  • Industrial drying
  • Aquaculture and aeration
  • Printing machinery
  • Medical and laboratory equipment
  • Vacuum or pressure systems

Available Accessories

  • Safety valves
  • In-line filters
  • Cartridge filters
  • Final silencers
  • In-line silencers
  • Vacuum and pressure gauges
  • Check valves
  • Anti-vibration mounts

Download Full Technical Data Sheet

Includes dimensional drawings, airflow curves, electrical specifications, and accessory options.

Download Data Sheet
60Hz Performance

At 60Hz, airflow increases to 376 m³/hr. Power options are 2.55 kW, 3.45 kW, and 4.6 kW depending on selected model.

Performance Information

Performance figures are based on handling air at 15°C with normal density and an absolute pressure of 1023 mbar. Manufacturing tolerance ±10%.

Need technical assistance?

Contact our technical sales team for help selecting the correct blower, filters, silencers, or accessories for your application.

Download Technical Sheet
Sku: BL060001M2200
