BL093 SINGLE Impeller / SINGLE Stage Blower - 4" Connections

...
Product Description
£5,100.00 £5,830.00
Maximum quantity available reached.

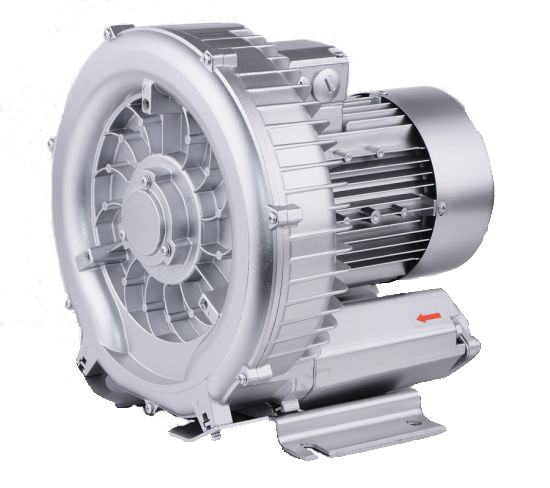

BL093 Side Channel Blower – Single Impeller / Single Stage

⚙️Continuous DutyBuilt for 24/7 operation
🌬️Vacuum & PressureExhaust or compression use
🔇Low Noise75 dB operation
🏗️Aluminium BodyFull die-cast construction

8.5 kW

  • Max Airflow: 1370 m³/hr
  • Rated Vacuum: 120 mbar
  • Rated Compression: 110 mbar
  • Noise Level: 75 dB
  • Weight: 98 kg

12.5 kW

  • Max Airflow: 1370 m³/hr
  • Rated Vacuum: 190 mbar
  • Rated Compression: 180 mbar
  • Noise Level: 75 dB
  • Weight: 121 kg

18.5 kW

  • Max Airflow: 1370 m³/hr
  • Rated Vacuum: 310 mbar
  • Rated Compression: 320 mbar
  • Noise Level: 75 dB
  • Weight: 131 kg
Connection Size4"
Frequency50Hz / 60Hz
ConstructionDie-Cast Aluminium

Typical Applications

  • Pneumatic conveying
  • Vacuum lifting systems
  • Packaging machinery
  • Industrial drying
  • Aquaculture and aeration
  • Printing machinery
  • Medical and laboratory equipment
  • High-flow vacuum or pressure systems

Available Accessories

  • Safety valves
  • In-line filters
  • Cartridge filters
  • Final silencers
  • In-line silencers
  • Vacuum and pressure gauges
  • Check valves
  • Anti-vibration mounts

Download Full Technical Data Sheet

Includes dimensional drawings, airflow curves, electrical specifications, and accessory options.

Download Data Sheet
60Hz Performance

At 60Hz, airflow increases to 1650 m³/hr. Power options are 9.8 kW, 14.5 kW, and 21.3 kW depending on selected model.

Performance Information

Performance figures are based on handling air at 15°C with normal density and an absolute pressure of 1023 mbar. Manufacturing tolerance ±10%.

Need technical assistance?

Contact our technical sales team for help selecting the correct blower, filters, silencers, or accessories for your application.

Download Technical Sheet
Sku: BL09300108500
